The Economics of Horizontal Infrastructure: Why Reversible ZAM Steel Paving Forms Dominate Modern Road Construction

In horizontal concrete work, the form is not a minor accessory. It is the temporary machine that controls line, grade, edge quality, slab thickness, joint geometry, dowel position, and the amount of labor required before and after every pour. When a contractor prices a set of concrete paving forms only by the purchase invoice, the calculation is already wrong. The real number is cost-per-pour, including setup labor, stripping labor, lost concrete, blowout repair, material replacement, landfill fees, equipment maintenance, and the residual value of the form after the project is finished.

For 2026 procurement, the central question is no longer whether timber can still hold concrete. Of course it can, for a short time and under easy conditions. The better question is whether timber, plywood, and steel-framed wood can still protect margin on municipal sidewalks, driveways, industrial yards, airfield slabs, road shoulders, curb-and-gutter zones, and long flatwork pours where speed, dimensional tolerance, and repeated setup matter. In many cases, they cannot.

Fresh concrete exerts lateral pressure on formwork; ACI 347 explains that concrete pressure depends on mixture behavior, placement rate, and consolidation methods, so forms must be treated as engineered temporary structures, not disposable boards (American Concrete Institute, 2014). In paving, this pressure is amplified by long continuous pours, vibratory screeds, uneven subgrade, and rushed field setup. If the form moves, the slab edge moves. If the slab edge moves, the contractor pays twice: first during placement, and again during correction.

Reversible Zinc-Aluminum-Magnesium (ZAM) steel paving rails solve this problem with a different philosophy. They are not consumables. They are reusable production assets. A properly selected metal flatwork form should reduce CAPEX through dual-use geometry, reduce OPEX through lower labor and maintenance, prevent blowouts through stiffness and locking, maintain dowel bar alignment through CNC precision, and preserve resale or scrap value at the end of service life.

The Hidden Sunk Costs of Timber and Steel-Framed Wood

Timber and plywood flatwork forms are attractive because they are familiar and cheap to buy. That is the trap. On the jobsite, timber is a high-OPEX consumable. It absorbs moisture, swells, bows, splits around stakes, loses straightness, and becomes more unpredictable with every pour. Even when the timber cost appears low, the contractor is quietly buying more labor, more waste, more rework, and more dimensional risk.

A realistic procurement model must include moisture deformation. Standard plywood and timber used around wet concrete can experience significant moisture-related movement; in field discussion, contractors often use a rough upper-bound assumption of 15% to 20% moisture absorption or swelling exposure when boards are unsealed, cut repeatedly, and stored outdoors. The exact figure depends on species, adhesive, veneer quality, edge sealing, and storage. The engineering point is simple: wood changes shape when it takes in water. A paving rail must not.

Once a plywood form warps, the crew has two choices. It can over-stake the board, which increases labor, or it can accept a wavy edge, which reduces finish quality. Neither option is free. On a long sidewalk, cycle lane, warehouse apron, or road shoulder, a small outward bow repeated over dozens of meters creates a visible defect. Municipal inspectors may not reject every wave, but owners see it, and grinding or edge patching can erase the savings from using timber.

The more expensive failure is a blowout. A blowout occurs when lateral wet concrete pressure, vibration, poor staking, subgrade gaps, or a weak joint forces concrete under, through, or around the form. The crew then loses line control and must stop placing, shovel spilled concrete, patch the form, and repair the edge after curing. Blowouts are not only messy; they are a cost event.

Blowout cost model: one avoidable failure

This is a conservative direct-cost model. It does not include schedule disruption, truck waiting time, inspector delay, reputation damage, or the cost of sending a supervisor back to a finished area. Ready-mix concrete prices vary by region; 2025 US market references commonly show delivered concrete in the broad range of approximately USD 125 to USD 180 per cubic yard, with higher prices for special mixes, short loads, and difficult delivery conditions. The calculation above uses USD 160 per cubic yard as a practical planning value.

The OPEX trap becomes clear over repeated pours. If a timber form set costs USD 4,000 and survives eight pours, the material cost alone is USD 500 per pour before labor, waste, and disposal. If the same project suffers one USD 510 blowout every ten pours, that adds another USD 51 per pour. If the forms require extra staking and alignment time of two crew-hours per pour at USD 45 per hour, that adds USD 90 per pour. The cheap form now costs USD 641 per pour before landfill fees and edge-quality risk.

End-of-life value is also different. Used timber formwork normally has negligible asset residual value. It is wet, damaged, nailed, cut, and contaminated with cement paste. It often enters the Construction and Demolition waste stream. The US EPA notes that reducing and recycling C&D materials can reduce environmental impacts and overall project expenses through avoided purchase and disposal costs (US Environmental Protection Agency, 2026). Metal paving forms, by contrast, remain reusable assets during service and retain scrap value at the end of life.

The Reversible Two-in-One Design: Cutting Mold CAPEX by 50%

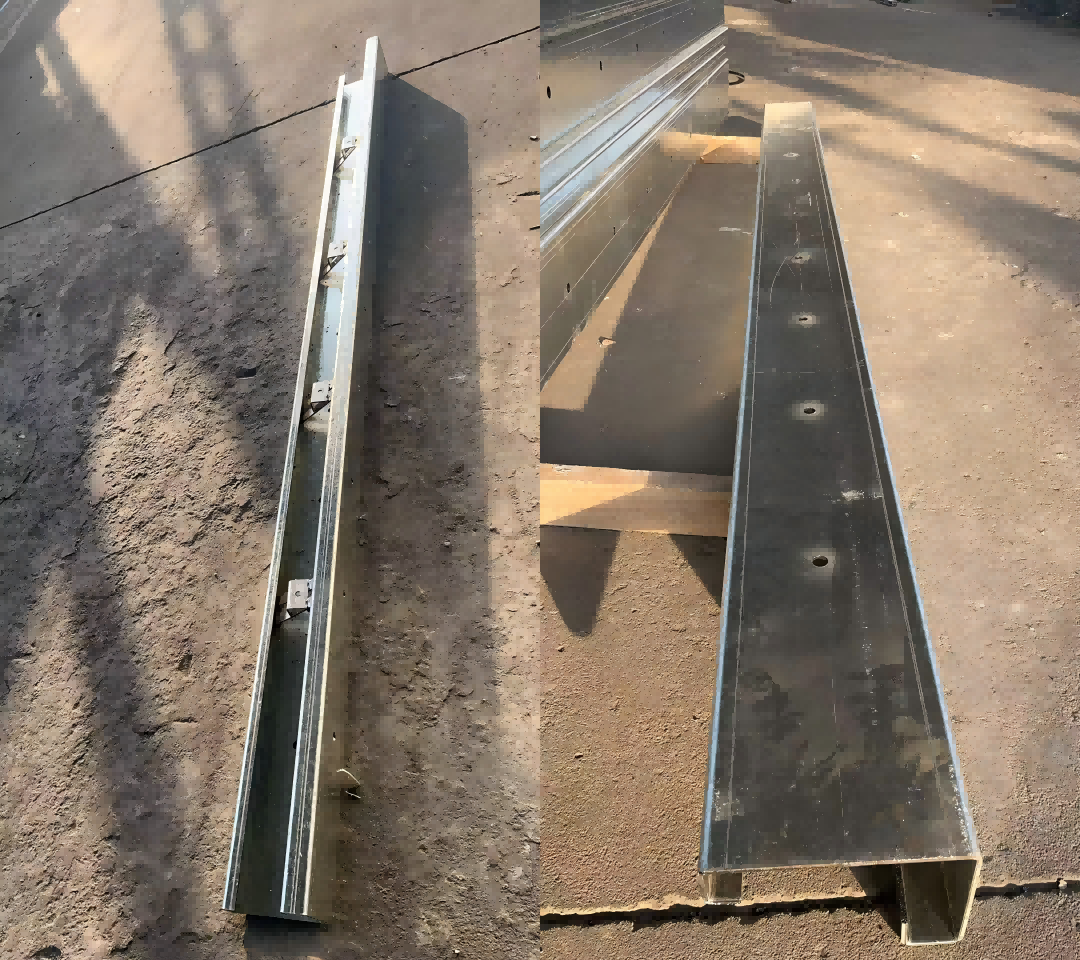

The flagship product category for modern flatwork is the Double-Faced Modern Steel Concrete Formwork Rail, known in many international markets as a reversible or dual-purpose paving form. The engineering idea is simple and powerful: both sides of the rail are usable against concrete. The form is not manufactured with one working face and one dead face. It is designed as a two-sided production tool.

The economic value becomes clear in municipal work. A contractor may pour a 150 mm sidewalk in the morning, then pour an adjacent 200 mm driveway apron, service entrance, or thicker loading edge in the afternoon. Traditional procurement pushes the contractor to buy two separate form sets: one 150 mm set and one 200 mm set. That means double CAPEX, double storage, double transport volume, and constant site confusion over which rail belongs to which pour.

A reversible asymmetric rail changes the procurement equation. Positioned upright, the rail provides a 150 mm pouring height. Flipped 180 degrees, the same rail provides a 200 mm pouring height. One physical mold performs two slab-depth specifications.

In this exact two-depth procurement scenario, the CAPEX reduction is 50% because one reversible set replaces two single-depth sets. The saving is not a marketing estimate; it is arithmetic. If two conventional sets cost USD 60,000 total, and one reversible set capable of both depths costs USD 30,000 to USD 36,000 depending on specification, the contractor either saves USD 24,000 to USD 30,000 in initial mold procurement or uses the same budget to buy more linear meters of productive forming capacity.

Operational savings follow the same logic. Workers do not waste time searching for the right side or the right depth set. The rail is flipped, locked, and installed. Inventory is cleaner, loading is simpler, and site supervisors reduce the risk of sending the wrong forms to the wrong crew. For large municipalities and road contractors managing multiple crews, fewer SKUs can be worth as much as the steel itself.

Structural Mechanics: 1.5 mm High-Strength ZAM vs. Heavy Mild Steel

Traditional American and European steel paving forms have often been built from thick mild steel. They are strong, but heavy. A 40 kg rail is not just a 40 kg object; it is a labor-planning problem. Repeated lifting, carrying, setting, stripping, cleaning, and restacking increases fatigue and slows setup. OSHA's ergonomics guidance emphasizes that repetitive material handling, posture, reach distance, twisting, and lifting frequency all influence back-disorder risk, not only the headline weight of the object (Occupational Safety and Health Administration, n.d.).

The material breakthrough is high-strength Zinc-Aluminum-Magnesium coated steel. In a properly engineered rail geometry, higher strength allows thinner gauge design while maintaining stiffness where it is needed. Ingkol's 1.5 mm ZAM rail specification is designed for lightweight handling while preserving practical resistance to field deflection under normal paving pour rates. Final design should always be verified against project slab depth, pour rate, support spacing, vibration method, and specified tolerance.

The procurement benefit is measurable. Consider a 100-rail setup. With a traditional 40 kg rail, many contractors require two workers for safe and efficient handling. If each rail move and placement sequence takes 2 minutes of two-person time, setup equals 400 labor-minutes, or 6.7 labor-hours. With an 18 kg ZAM rail, one worker can handle the rail in many site conditions. If one worker sets each rail in 1.3 minutes because the part is lighter and easier to align, setup equals 130 labor-minutes, or 2.2 labor-hours. The labor-hour reduction is approximately 67%. In productivity language, the lighter system can complete the same rail-setting task about three times as fast on labor-hours, or roughly 200% more productive than the baseline.

This is an engineering cost model, not a universal promise. Real productivity depends on crew training, staging distance, subgrade condition, stakes, locks, screed method, and whether the project uses stringline, laser control, or robotic layout. But the direction is fixed: reducing manual rail weight reduces handling time, fatigue, and crew size pressure.

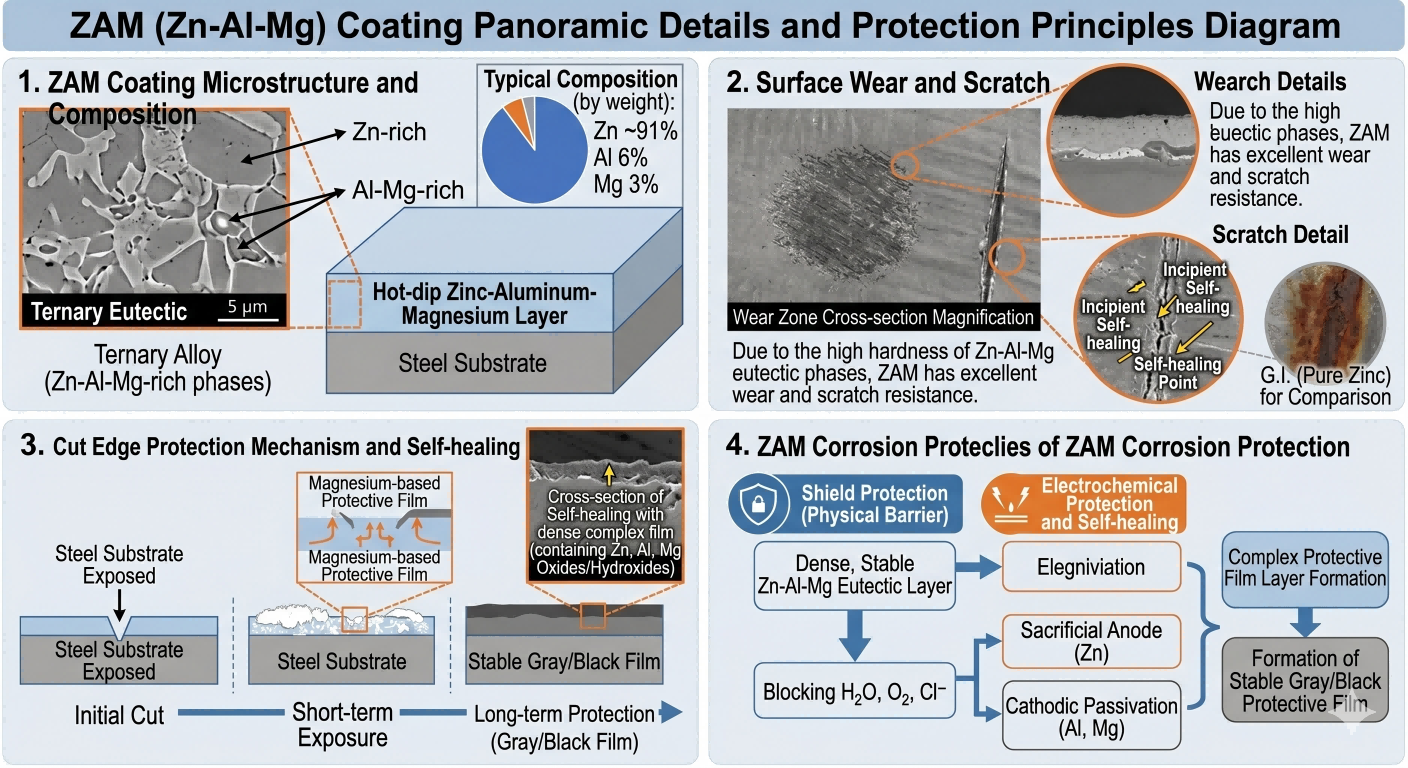

The corrosion logic is equally important. Painted steel depends on a coating layer that is repeatedly scratched by gravel, stakes, screeds, pry bars, concrete paste, and transport. Once the coating is damaged, exposed steel rusts. Zn-Al-Mg coatings work differently. Studies on Zn-Al-Mg alloy-coated steel report cut-edge protection and self-healing behavior linked to protective corrosion products and the role of Mg-containing phases such as MgZn2 (Kim et al., 2024; Lee et al., 2015). For paving forms, this matters because the rail lives in mud, aggregate, cement alkalinity, abrasion, and outdoor storage. Eliminating constant maintenance painting reduces OPEX and avoids the environmental and operational nuisance of anti-corrosion paint.

The 2 mm Disaster: CNC Precision for Dowel Bar Alignment

In road and municipal paving, the dowel bar is not a detail to be handled casually. Dowel bars transfer load across joints while allowing slab movement from temperature and shrinkage. Poor dowel bar alignment can create restraint, reduce load-transfer performance, and contribute to joint distress. FHWA's LTPP research specifically studied the effect of dowel misalignment on jointed plain concrete pavement performance, confirming that dowel alignment is a serious pavement-performance variable, not a cosmetic issue (Federal Highway Administration, 2020).

The field-drilled timber method is weak because it introduces human error at the worst possible moment. A crew member drills holes through wet or warped timber on site, often while working under schedule pressure. The drill angle changes. The board moves. The hole tears. The bar enters crooked. Even a small angular or translational error can create stress when the slab wants to move. The phrase "only 2 mm" is dangerous in concrete pavement, because a dowel system is repeated over hundreds or thousands of bars. Small errors become a pattern.

The correct approach is to manufacture precision into the rail. Ingkol's ZAM steel paving rails use CNC laser-cut dowel holes with a strict tolerance target of +/-0.5 mm. This does not depend on a laborer drilling by eye. The hole position is defined in the digital file, cut by machine, and repeated across every rail. Workers can slide dowel bars through the rail quickly and consistently, reducing friction in the setup process and reducing the risk of joint restraint after the slab is in service.

Precision dowel holes must also be supported by rail-to-rail stability. Sliding end-locks keep adjacent rails aligned under repeated placement and high-frequency vibration from roller screeds or vibratory finishing equipment. Without locking, even a precise hole is not enough; the whole rail line can move. With locking, CNC hole geometry and mechanical rail alignment work together as one system.

For procurement directors, this is where a metal paving form becomes more than a side rail. It becomes a quality-control fixture. The form controls the slab edge, the height, the joint, and the dowel bar path. Timber cannot repeat this level of dimensional tolerance over long mileage because every hole and every board is different.

Lifecycle Economics: CAPEX, OPEX, and Cost-Per-Pour

The correct procurement metric is not purchase price per meter. It is cost-per-pour and cost-per-linear-meter delivered to acceptable quality. Reusable formwork research consistently emphasizes that lifecycle performance depends on repeat use, maintenance, repair, and end-of-life value rather than initial cost alone. A life-cycle assessment and economic analysis of reusable formwork published in Developments in the Built Environment demonstrates why formwork decisions must be assessed across repeated cycles, not as a single-purchase item (Ramasamy & others, 2024).

A simplified cost-per-pour equation is:

Cost-per-pour = (Initial CAPEX - residual value + maintenance + disposal + expected rework + expected blowout cost + extra handling labor) / number of successful pours

Timber can win only when the project is very small, the required tolerance is low, the expected reuse is minimal, and labor cost is not properly counted. Reversible ZAM steel wins when the same crew pours repeatedly, when slab depths vary, when edge quality matters, when dowel alignment matters, or when procurement wants a form set that remains an asset after the job.

Upgrade Your Fleet to Ingkol Infrastructure Solutions

The procurement case is straightforward. Reversible sizing can reduce mold CAPEX by 50% in dual-depth municipal work. Lightweight 1.5 mm ZAM rails can reduce handling labor and make rail setting roughly three times more productive in the 100-rail model. CNC dowel holes with a +/-0.5 mm tolerance target reduce alignment risk. Sliding end-locks keep long runs stable under vibration. ZAM coating eliminates the repainting cycle and protects the rail in gravel, mud, alkaline concrete contact, and outdoor storage.

Do not settle for outdated timber or heavy iron. Explore the exact product catalog: "Double-Faced Modern Steel Concrete Formwork Rails With High Strength For Road & Municipal Engineering" on the official Ingkol Metal website. Contact the engineering advisory team at Ingkol Metal today to submit project drawings for a comprehensive lifecycle cost analysis and customized quote.

Buyer Checklist: What to Specify Before Ordering Concrete Paving Forms

Before issuing a purchase order, procurement teams should define the following information. First, specify the slab depths and whether reversible sizing can replace two form sets. Second, define the required linear meters per crew and the number of simultaneous pours. Third, identify whether dowel bars are required, their diameter, spacing, and joint layout. Fourth, confirm screed type, vibration intensity, and whether the form must support equipment tracks. Fifth, define target tolerance for edge straightness and dowel hole alignment. Sixth, require the supplier to provide a cost-per-pour model, not only a price list. Seventh, ask for end-lock details, stacking method, surface protection, and expected maintenance procedure.

A contractor that buys only by lowest CAPEX may save money in the purchasing department and lose it on the slab. A contractor that buys by lifecycle cost protects the field crew, the schedule, the inspection result, and the margin.

Approximate calculation of the amount:

Note: There is an error in the data calculation. Please refer to the actual operating costs. This table is for reference only!

Labor equation: 100-rail setup example:

Note: There is an error in the data calculation. Please refer to the actual operating costs. This table is for reference only!

Illustrative 50-pour procurement comparison:

Note: There is an error in the data calculation. Please refer to the actual operating costs. This table is for reference only!

References

American Concrete Institute. (2014). ACI 347R-14: Guide to formwork for concrete. https://www.concrete.org/Portals/0/Files/PDF/CEU-347R-14.pdf

Federal Highway Administration. (2020). Long-Term Pavement Performance Data Analysis Program: Effect of Dowel Misalignment on Concrete Pavement Performance (FHWA-HRT-20-070). https://highways.dot.gov/sites/fhwa.dot.gov/files/FHWA-HRT-20-070.pdf

Kim, S.-H., Jin, S.-Y., Yang, J.-H., Lee, M.-H., & Yun, Y.-S. (2024). Self-healing phenomenon at the cut edge of Zn-Al-Mg alloy coated steel in chloride environments. Coatings, 14(4), 485. https://doi.org/10.3390/coatings14040485

Lee, H., Park, J., Kim, J., & others. (2015). Surface and cut-edge corrosion behavior of Zn-Mg-Al alloy-coated steel sheets. Metals and Materials International. https://link.springer.com/article/10.1007/s12540-015-5411-9

Occupational Safety and Health Administration. (n.d.). OSHA Technical Manual, Section VII, Chapter 1: Back disorders and injuries. https://www.osha.gov/otm/section-7-ergonomics/chapter-1

Ramasamy, S., et al. (2024). Life cycle assessment and economic analysis of reusable formwork. Developments in the Built Environment. https://www.sciencedirect.com/science/article/pii/S2090447923004744

US Environmental Protection Agency. (2026). Industrial and Construction and Demolition (C&D) Landfills. https://www.epa.gov/landfills/industrial-and-construction-and-demolition-cd-landfills
