A practical technical white paper for contractors who need to choose the right formwork system before money, time, and site labor are wasted.
In 2026, a contractor who still does not know how to select and operate pure metal formwork will lose competitiveness. This is not because timber and plywood suddenly became useless. They still have a place in small, irregular, one-time jobs. The problem is that modern construction is no longer patient. Owners want faster cycles, cleaner concrete, fewer workers, less waste, predictable costs, and better safety control. Traditional timber-based formwork cannot carry that pressure on repeated projects.
The first mistake many buyers make is comparing formwork only by the purchase price per square meter. That is how bad decisions start. A cheap panel that dies after a few pours, absorbs water, loses shape, or needs constant carpentry is not cheap. A formwork system must be judged by its cost per pour, labor per pour, maintenance per pour, cycle speed, concrete surface quality, and residual value at the end of the project.
The industry literature agrees with what experienced site teams already know: formwork selection affects cost, time, quality, and overall performance in reinforced concrete construction (Terzioglu et al., 2022). A modern review of concrete formwork systems also identifies safety, cost, geometry, construction time, and surface quality as key selection requirements (Li et al., 2022). In other words, formwork is not a temporary accessory. It is the mold, the workflow, and the production discipline of the concrete structure.
Timber, plywood, steel-framed plywood, and aluminum-framed wood systems are all transitional solutions. They helped the industry move faster than traditional site carpentry, but they also keep the weak point of the system: the wood face. Wood absorbs water. Plywood edges swell. Screw holes expand. Corners chip. After repeated pours, the face sheet loses accuracy and concrete quality drops. When the panel face is replaced, the job does not only cost material; it costs labor, waiting time, sorting, drilling, fastening, and inspection.
Steel-framed plywood and aluminum-framed wood look stronger than loose plywood, but their problem remains the same. The frame may survive, but the wood face becomes the consumable part. At the end of a project, broken plywood has little or no scrap value and usually becomes construction waste. On a large job, that waste is not only ugly; it is a cost item. It must be collected, moved, stored, and disposed of.
Pure metal formwork changes the accounting. Steel and aluminum panels are not consumables in the same way. They are assets. They can be reused, repaired, leased, transferred, and eventually sold for scrap. A well-managed metal system can reduce landfill waste and preserve residual value. Studies on reusable formwork and circular economy show that reuse cycles strongly change the environmental and economic result of formwork systems (Tighnavard Balasbaneh et al., 2024). That is the key: the more times a panel works, the more its real cost falls.
The formula I use with customers is simple: Equivalent Cost per Pour = (Purchase Cost + Maintenance Cost + Modification Cost + Handling Cost + Schedule Cost - Residual Scrap Value) / Effective Number of Uses. This formula makes one thing very clear. The cheapest formwork at the procurement desk is often the most expensive formwork at the end of the structure.
System | What looks attractive | Hidden problem / control point | Best-fit use |
Timber / plywood | Low initial price; easy to cut on site | Water absorption, swelling, low repeatability, high waste, unstable surface quality | Small, irregular, one-time jobs where precision and reuse are not critical |
Steel-framed plywood | Stronger frame; familiar to many crews | Wood face remains the weak point; panel replacement requires labor and produces waste | Medium projects with moderate repetition but limited capital budget |
Aluminum-framed wood | Lighter than steel-framed plywood; easier handling | Still depends on wood face; residual value mainly in frame, not face | Temporary solution when light handling matters but pure aluminum is not justified |
Pure steel / ZAM steel | High strength, high residual value, strong impact resistance, long reuse potential | Needs correct weight design, corrosion strategy, and handling plan | Villas, bridges, basements, podiums, heavy walls, moderate-to-high repetition |
Pure aluminum | Very light, fast, accurate, excellent for repetition and floor cycles | Higher upfront investment; best when geometry repeats | Mid-rise, high-rise, and ultra-high-rise residential or tower projects |
A formwork buyer does not need to become a metallurgist, but he must understand the practical behavior of the material on site. The important questions are: How heavy is the panel? How does it resist impact? How does it resist wet concrete and cleaning? How many times can it turn over before the maintenance cost becomes painful? What residual value remains when the project is finished?
Below is how I explain the main metal options to contractors and engineers.
Material | Plain-English description | Main advantage | Risk / limitation | Best-fit use |
Q235 steel | Traditional mild steel. Cheap and easy to fabricate. | Low entry cost; familiar welding and fabrication; strong enough for many basic systems. | Heavy. Requires painting or other surface protection. If neglected, rust appears quickly, especially after scratches and wet storage. | Budget-driven jobs, low labor-cost regions, simple heavy-duty formwork where weight is acceptable. |
Q700 / Q700L high-strength steel | Higher-strength steel used to reduce thickness and weight compared with Q235. | Better strength-to-weight ratio than Q235. Good for stronger panels with less steel mass. | Still needs an anti-rust coating strategy. Once paint is knocked off during loading, cleaning, or stacking, wet alkaline concrete and moisture can start corrosion at exposed points. | Steel panel systems requiring weight reduction but not yet upgraded to Zn-Al-Mg coated material. |
Galvanized steel | Steel protected by zinc coating. | Improved corrosion protection compared with painted black steel. Zinc provides sacrificial protection. | Repeated concrete pouring, cleaning, abrasion, and impact gradually wear the coating. Cut edges, scratches, and worn contact points need attention. | General reusable steel formwork where corrosion resistance matters but lifecycle demand is moderate. |
ZAM-type Zn-Al-Mg coated high-alloy steel | Ingkol's 2026 flagship direction for next-generation steel formwork. | Strong corrosion resistance, cut-edge protection, self-healing behavior, reduced painting maintenance, and lighter panel design in suitable applications. Public research shows Zn-Al-Mg coatings can improve corrosion performance and cut-edge resistance through corrosion-product formation and Mg/Al effects (Kim et al., 2024; Malla et al., 2025). | Requires proper forming, welding, edge design, and compatibility engineering. It is not a magic sheet; it must be designed as a system. | Villas, bridge structures, basements, podiums, and projects needing steel durability with lower maintenance and high turnover cycles. |
6061-T6 aluminum | Heat-treated aluminum alloy widely used where light weight and precision are critical. | Very light. Fast manual handling. Excellent for standardized wall-slab cycles and high-rise repetition. Helps reduce dependence on heavy lifting equipment. | Higher upfront cost. Less forgiving for random cutting or brutal modification. Best when project geometry is stable and drawings are mature. | Multi-building apartments, high-rise residential, and ultra-high-rise towers targeting fast floor cycles. |
ZAM is often used in the market as shorthand for zinc-aluminum-magnesium coated steel. The exact chemistry and trademark status vary by producer, but the engineering idea is the same: use magnesium and aluminum within a zinc-based coating to improve corrosion behavior beyond ordinary galvanized steel. Nippon Steel describes ZAM as a highly corrosion-resistant hot-dip coated steel sheet in which magnesium and aluminum contribute to corrosion resistance and scratch resistance (Nippon Steel Corporation, n.d.). ArcelorMittal's Magnelis technical guide describes a Zn-Al-Mg coating with a self-healing effect at deformed zones, edges, and perforations, and reports strong behavior in alkaline concrete-like environments (ArcelorMittal, 2022).
For formwork, this matters because concrete is wet, alkaline, abrasive, and repetitive. Traditional painted steel depends on paint. The site damages the paint. Once the coating peels, the steel starts to rust. A Zn-Al-Mg coated system does not remove the need for engineering discipline, but it changes the maintenance logic. Instead of repainting as a recurring punishment, the protective coating itself becomes part of the design.
The second advantage is weight. With stronger steel and better corrosion protection, the panel can be designed thinner in selected applications. Ingkol's 2026 ZAM steel direction targets designs down to 1.5 mm where load calculation, panel size, rib layout, and pour pressure allow it. This is not a universal thickness for every wall. A basement wall and a villa wall do not create the same pressure. But when the engineering conditions are right, a lighter steel panel changes the labor economics immediately.
The third advantage is cleanliness. We are improving the reinforcing-rib welding layout on the back of the panel. A bad rib layout traps slurry, dirt, and rust. It wastes cleaning time and makes stacking unstable. A cleaner back structure helps panels stack properly, return to the next pour faster, and maintain a professional site condition. That is not cosmetic. It is productivity.
The right formwork is not chosen by fashion. It is chosen by repetition, geometry, wall pressure, labor cost, crane availability, project duration, waterproofing risk, and financing capacity. A contractor should begin with four numbers: total concrete contact area, number of repeated floors or units, target cycle time, and expected number of reuses. Then he should ask what happens after the project: store, lease, transfer, sell, or scrap.
Research on formwork material selection confirms that no single system wins everywhere; the correct choice depends on the interaction between system characteristics, structural design, local conditions, cost, and performance requirements (Terzioglu et al., 2022). A 2025 MCDM study also found aluminum highly suitable for high-rise work while emphasizing that mixed combinations of aluminum, steel, and plastic can optimize benefits in some cases (Worku, 2025). This is very close to what we see on actual projects: one material rarely solves the entire building perfectly.
Project type | Typical project reality | Recommended system | Why it works | Engineering warning |
1-2 villas | Limited repetition; owner wants lower initial cost; geometry may not repeat enough to justify full aluminum. | ZAM steel formwork or well-designed high-strength steel formwork. | Lower initial purchase cost than full aluminum. Strong enough for the expected cycles. High residual value compared with timber or plywood. | Do not overbuy. Standardize panels where possible and avoid too many non-standard pieces. |
Multiple villas, 20-50 units | Many repeated walls, columns, beams, and small slabs; frequent turnover; strong need for durability. | ZAM steel formwork - the sweet spot. | High-frequency reuse brings down cost per pour. Steel handles site impact better than aluminum in rough low-rise cycles. ZAM coating reduces repainting and rust maintenance. | Plan logistics carefully. Panel numbering and storage discipline decide how much value is actually captured. |
Multi-building mid-rise apartments | Standardized floor plates; repeated walls and slabs; labor saving is critical. | Aluminum formwork system, with steel or ZAM steel supplements where heavy-duty or special parts are needed. | Light panels reduce labor. Standardization supports fast floor cycles and consistent concrete surfaces. Good for repeated towers or apartment blocks. | Drawings must be mature. Late changes destroy the advantage of aluminum. |
Ultra-high-rise towers | High repetition; extreme schedule pressure; floor cycle becomes the business model. | Full aluminum formwork system with climbing/working platform coordination. | Maximum speed, manual handling efficiency, and floor-to-floor repeatability. High-rise comparisons show formwork systems are central to cost, efficiency, reusability, and timelines (Ashwin & Paul, 2025). | Project management must be disciplined. Aluminum is fast only when rebar, MEP, concrete supply, and inspection keep the same rhythm. |
Complex commercial podium + tower | Podium has irregular beams, transfer floors, curves, ramps, or large openings; tower above is repetitive. | Mixed system: ZAM steel for complex podium and heavy-duty areas; aluminum for standard tower floors. | Steel gives flexibility and robustness at the complex bottom. Aluminum gives speed on the repetitive upper structure. This avoids forcing one material to do work it is not best at. | Interface design is critical: hole grid, panel depth, locking method, alignment, and pouring sequence must be engineered together. |
Bridge piers, curved walls, infrastructure | High pressure, special geometry, high concrete quality requirement, strong handling environment. | ZAM steel, Q700 steel, or customized heavy-duty steel systems. | Steel handles pressure, impact, and custom geometry better. ZAM upgrade reduces corrosion and paint maintenance during repeated infrastructure cycles. | Check pour rate, temperature, concrete slump, vibration method, and access for stripping before finalizing panel strength. |
How many times can the same panel realistically be reused on this project, not theoretically in a catalog?
How many workers are required to move, install, align, strip, clean, and restack the system?
Does the project lose money if one floor cycle slips by one day?
Will the system produce a concrete surface good enough to reduce plastering, grinding, or repair?
Does the panel retain residual scrap value after the project?
Can the system be leased, reused on another project, or combined with other systems?
What is the cost of maintenance: painting, replacing plywood faces, cleaning slurry, repairing holes, and sorting damaged panels?
The correct answer is rarely "steel is cheaper" or "aluminum is faster." The correct answer is: which system gives the lowest cost per qualified concrete cycle under the real constraints of this project?
The most expensive mistake in aluminum formwork is forcing the whole project into one fastening philosophy. Many suppliers sell tie-rod systems or flat tie systems as if one must defeat the other. That is not engineering. That is catalog thinking.
A building is not one condition. A basement wall, a bathroom wall, a shear wall, a stair core, a standard partition, and a podium transfer structure do not carry the same risk. Some zones need maximum strength. Some zones need maximum water resistance. Some zones need speed. Some zones need tolerance for site abuse. The best system is often a mixed system, designed as one coordinated assembly.

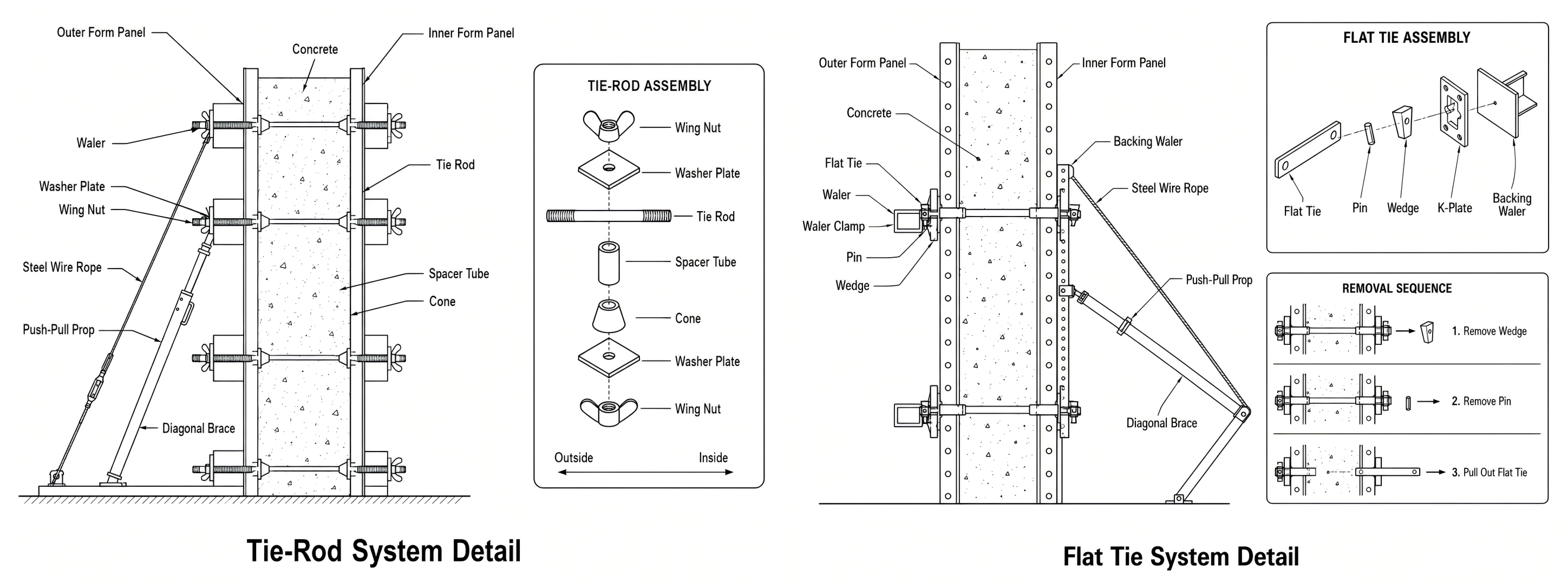

The tie-rod system uses through-wall rods or sleeves to resist lateral concrete pressure. It is strong because the load path is direct. Fresh concrete pushes the panels outward, and the tie rods pull the opposing panels together. For thick walls, tall pours, high pour rates, or heavy vibration, this is a robust engineering answer.
The advantage is strength. The disadvantage is the wall hole. After stripping, the wall has tie holes that require patching, sealing, and inspection. In normal dry zones, that may be acceptable. In basements, water tanks, bathrooms, wet shafts, or below-grade walls, every through-wall path becomes a risk point. If the sealing work is rushed or badly supervised, water will find the weakness later.
The flat tie system uses flat ties or tie bars that do not create the same continuous through-wall sleeve as a traditional tie rod. After stripping and finishing according to the specified method, the wall is much cleaner from a waterproofing perspective. For bathrooms, wet rooms, basement partitions, and areas where leakage risk is unacceptable, the flat tie logic is often the better choice.
The trade-off is capacity. Flat tie systems have practical limits in wall thickness, pour pressure, and stiffness. They are excellent for many building walls, but they should not be blindly used for every heavy wall. A project engineer must check wall height, thickness, pour rate, concrete temperature, slump, vibration method, and panel stiffness before choosing flat tie everywhere.
System | Load capacity | Waterproofing / surface result | Best-fit areas | Warning |
Tie-rod system | Very high. Best for thick walls, high pressure, and heavy-duty pours. | Leaves through-wall holes or sleeves requiring repair and sealing. | Main shear walls, thick basement walls where waterproofing details are engineered separately, bridge/infrastructure walls, heavy retaining walls. | If used in wet areas, sealing quality must be controlled strictly. |
Flat tie system | Moderate to high depending on wall thickness and design. Lower than tie-rod for extreme loads. | No continuous tie-rod sleeve through the wall; cleaner wet-zone result when installed correctly. | Bathrooms, wet rooms, thin-to-medium walls, residential walls, areas where repair holes are undesirable. | Do not use blindly for very thick or high-pressure pours without engineering checks. |
Mixed assembly | Optimized by zone: tie-rod where force is high, flat tie where water risk is high. | Optimized by zone: reduce leakage paths where needed while preserving strength elsewhere. | Complex buildings with basements, bathrooms, cores, towers, podiums, and mixed wall thicknesses. | Requires a supplier who can engineer interfaces, tolerances, locks, and sequencing. |
Ingkol's strongest technical direction is not simply selling a steel panel or an aluminum panel. It is mixed-assembly engineering. We do not force a customer to choose only tie-rod or only flat tie, only steel or only aluminum. In the same project, we can design flat tie systems for bathrooms and wet zones, tie-rod systems for main load-bearing walls, ZAM steel formwork for heavy or irregular podium areas, and aluminum formwork for standardized tower floors.
The challenge is not the idea. The challenge is execution. A mixed system must solve five interface problems.
1. Load-path compatibility: Steel, aluminum, tie-rod, and flat tie components must carry concrete pressure without creating weak transitions. The interface panel is often the most important panel in the system.
2. Locking and hole-grid compatibility: Pins, wedges, bolts, tie holes, rail profiles, and panel depths must align. A 2 mm mismatch on paper becomes a one-hour argument on site.
3. Dimensional tolerance: Aluminum systems demand high repeatability. Steel custom parts can absorb more irregularity. The design must decide where precision is fixed and where tolerance is allowed.
4. Water and corrosion control: When different metals or coatings meet, the design must consider moisture, concrete alkalinity, and contact conditions. Isolation, surface protection, and drainage details may be needed at interfaces.
5. Construction sequence: A mixed system must be easy to understand by site crews. Panel numbers, color marks, packing sequence, assembly drawings, and stripping order must be designed before shipment.
Example: In a commercial podium plus residential tower, Ingkol may recommend ZAM steel formwork for curved walls, transfer beams, ramps, and heavy podium walls; flat tie aluminum panels for bathrooms and wet areas; tie-rod aluminum panels for high-load core walls; and full aluminum systems for the repetitive upper floors. This is not a compromise. It is the correct use of each material where it performs best.
The customer advantage is direct: fewer repairs, lower maintenance, faster cycle time, better water-risk control, and a formwork package that follows the logic of the building instead of forcing the building to follow the limitations of one catalog.
Choosing formwork is not buying sheets of steel or aluminum. It is buying a temporary production line for reinforced concrete. A bad production line creates delay, waste, surface defects, repair work, leakage risk, angry crews, and arguments between procurement and site management. A good production line creates rhythm. Rhythm is money.
For 2026, the direction is clear. Timber and plywood will still exist for small and irregular work, but competitive contractors will increasingly move to pure metal systems. ZAM-type Zn-Al-Mg coated steel will reduce the pain of repainting and corrosion maintenance. Aluminum will remain the speed king for standardized high-rise cycles. Mixed-assembly engineering will become the best answer for complex buildings, because real buildings are mixed problems.
Ingkol Metal exists to help overseas contractors access the manufacturing, engineering, leasing, and financial strength behind Yonfron Group. We are not asking customers to buy blindly. Send us your drawings, structural plans, wall thicknesses, construction schedule, expected cycle time, and project location. We will study the building and propose the 2026 optimal formwork scheme: steel, ZAM steel, aluminum, tie-rod, flat tie, or a mixed assembly where that is the right answer.
If you are preparing a spring 2026 project, contact Ingkol Metal through ingkolmetal.com or our international channels. The earlier we see the drawings, the more money we can help you save before the first concrete truck arrives.
ArcelorMittal. (2022). Magnelis technical guide. https://content.mcb.eu/hubfs/MagnelisTechGuide2204.pdf?hsLang=en
Ashwin, K., & Paul, V. K. (2025). Comparison of aluminum and tunnel formwork for high-rise construction. Discover Civil Engineering, 2, Article 87. https://doi.org/10.1007/s44290-025-00236-6
Kim, S.-H., Jin, S.-Y., Yang, J.-H., Yang, J.-H., Lee, M.-H., & Yun, Y.-S. (2024). Self-healing phenomenon at the cut edge of Zn-Al-Mg alloy coated steel in chloride environments. Coatings, 14(4), 485. https://doi.org/10.3390/coatings14040485
Li, W., Lin, X., Bao, D. W., & Xie, Y. M. (2022). A review of formwork systems for modern concrete construction. Structures, 38, 52-63. https://doi.org/10.1016/j.istruc.2022.01.089
Malla, A. D., Williams, G., Britton, D. A., Goodwin, F. E., Domingos Cardoso, A. P., Richards, T., Penney, D. J., & Sullivan, J. H. (2025). Influence of Mg and Al alloying additions on the corrosion mechanisms of hot-dipped Zn-Mg-Al coatings: Role of microstructure and phase distribution. npj Materials Degradation, 9, Article 96. https://doi.org/10.1038/s41529-025-00647-x
Nippon Steel Corporation. (n.d.). About ZAM. https://www.nipponsteel.com/product/zam/en/about/
Terzioglu, T., Polat, G., & Turkoglu, H. (2022). Formwork system selection criteria for building construction projects: A structural equation modelling approach. Buildings, 12(2), 204. https://doi.org/10.3390/buildings12020204
Tighnavard Balasbaneh, A., Sher, W., & Wan Ibrahim, M. H. (2024). Life cycle assessment and economic analysis of reusable formwork materials considering the circular economy. Ain Shams Engineering Journal, 15(4), 102585. https://doi.org/10.1016/j.asej.2023.102585
Worku, T. T. (2025). Formwork material selection and optimization by a comprehensive integrated subjective-objective criteria weighting MCDM model. Discover Materials, 5, Article 2. https://doi.org/10.1007/s43939-024-00162-x
