Q700L
INGKOL
ingkol-3

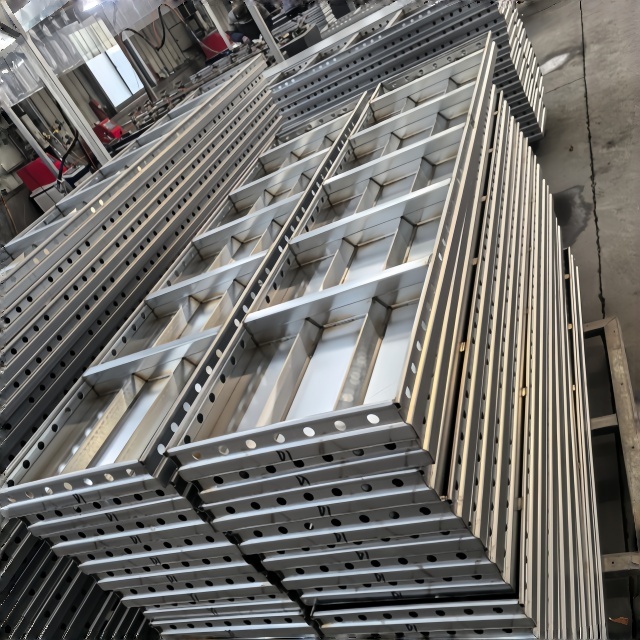

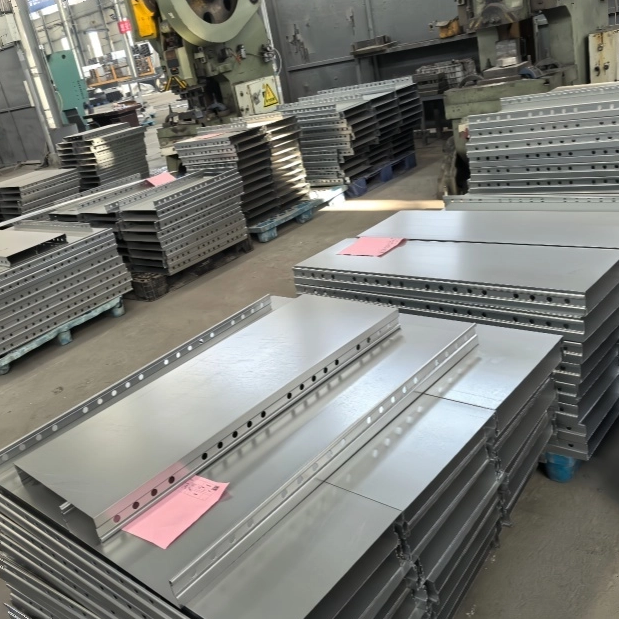

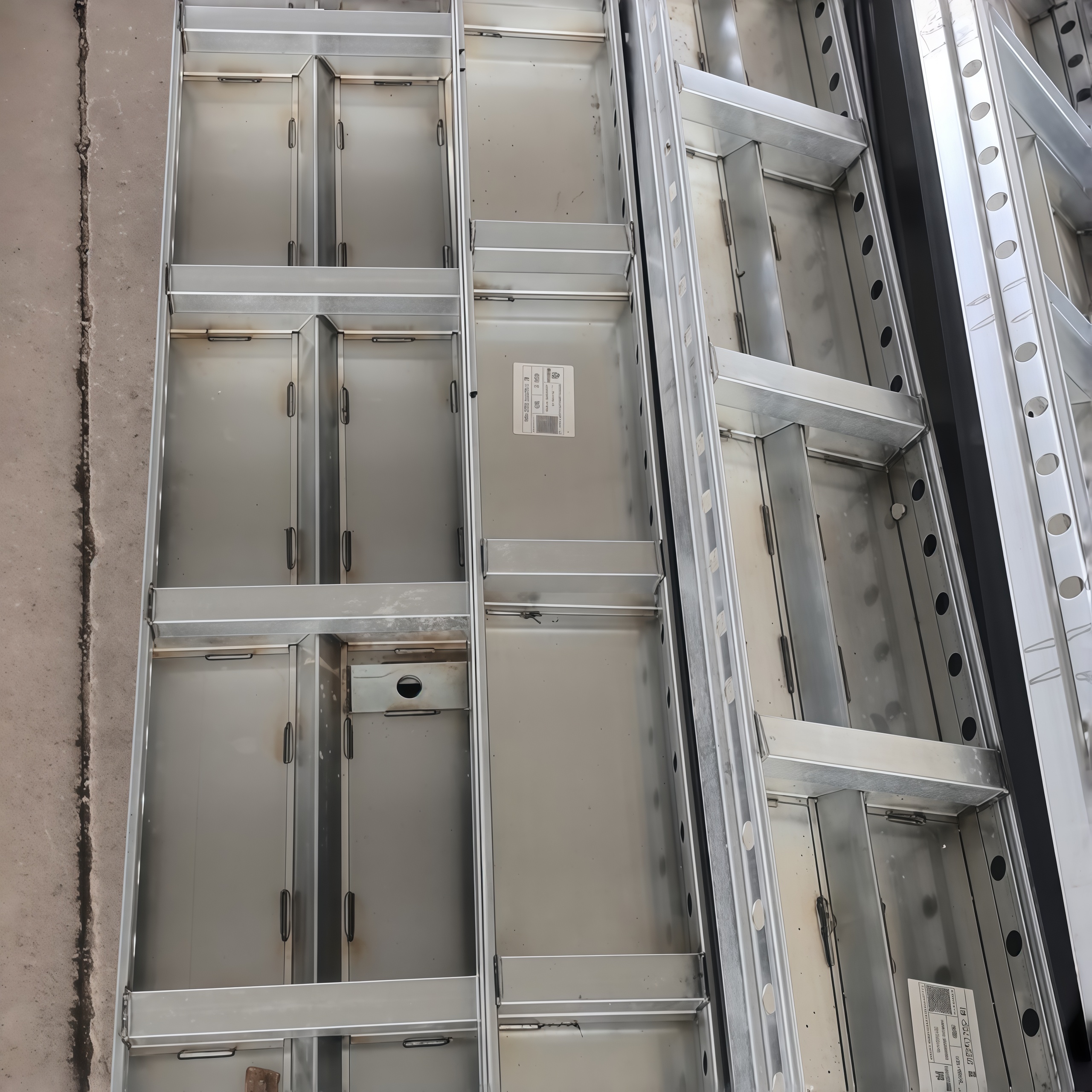

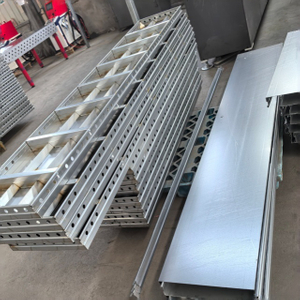

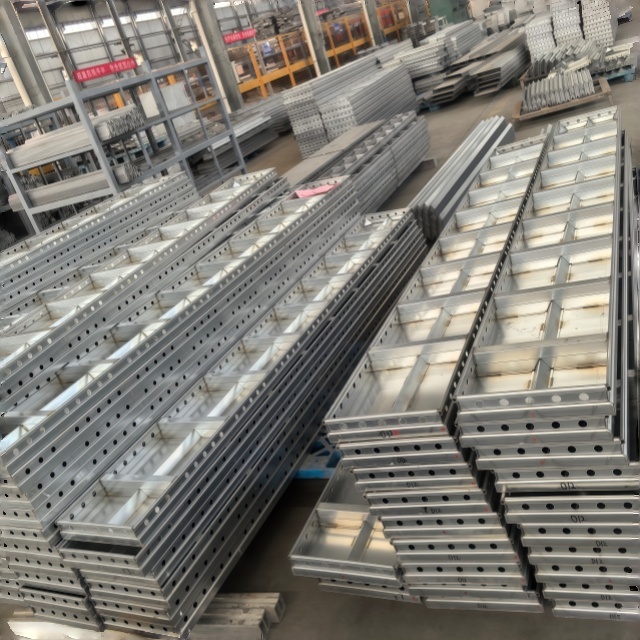

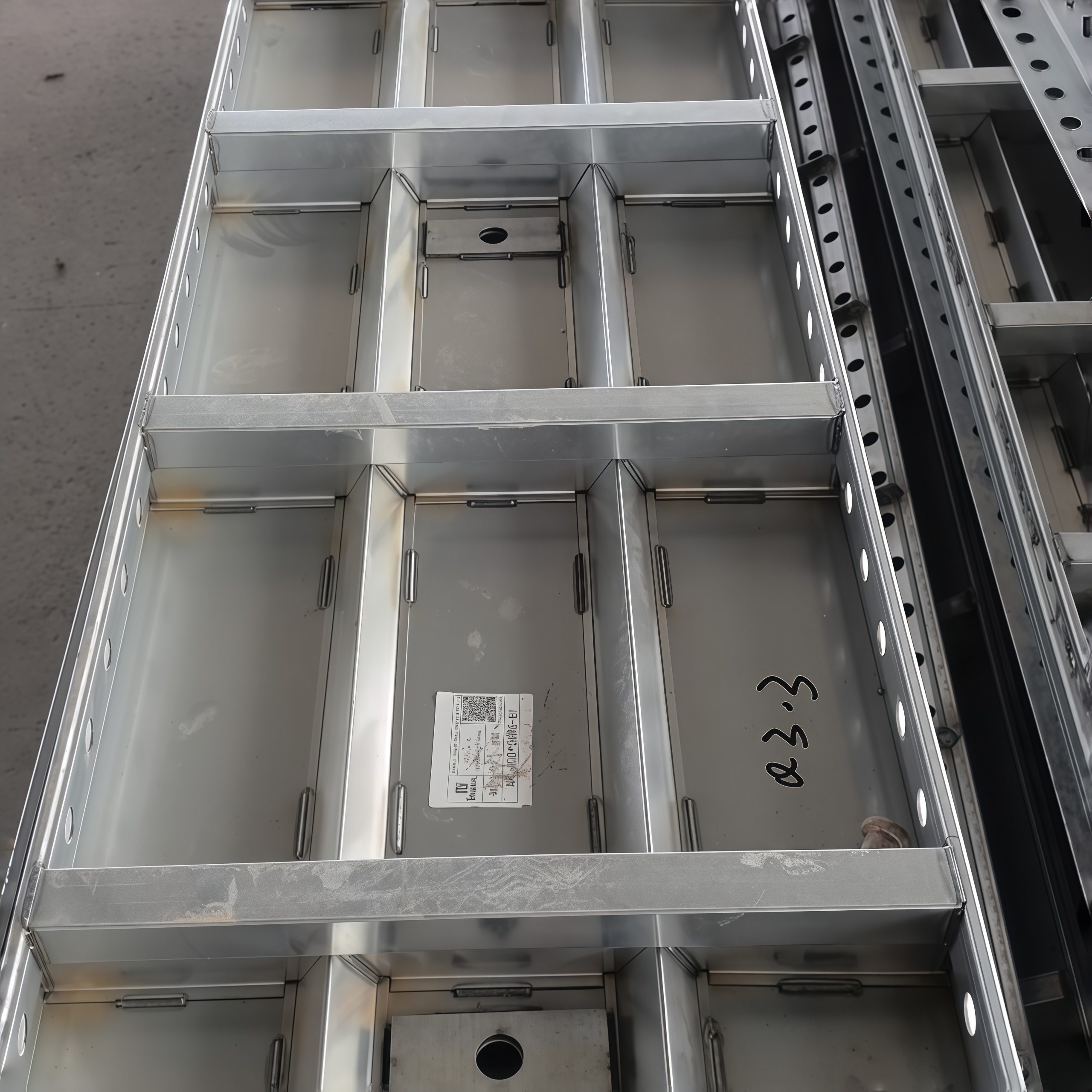

Our alloy steel formwork is made of high-strength structural steel with anti-corrosion coating. Stable structure, no deformation, easy demolding and zero slurry leakage. Ideal alternative to aluminum and wooden formwork for modern concrete construction.
✅ 200+ Reusable Cycles
High tensile strength, resistant to bending and rust, long service life for repeated projects.
✅ Superior Cost Performance
Lower initial cost than aluminum formwork, saves labor and material costs in long-term use.
✅ Fast Modular Assembly
Standard modular design, simple pin connection, improves construction efficiency greatly.
✅ Perfect Concrete Finish
Flat panel and tight joints, concrete surface meets international standards without extra plastering.
✅ Wide Application
Suitable for walls, columns, beams, slabs, basements, tunnels and municipal infrastructure.
Item Technical Parameter
Raw Material Q700 High Strength Alloy Steel
Panel Thickness 1.5mm / 2.0mm / Customized
Reuse Cycles ≥300 Times
Load Bearing Capacity 45–50 kN/㎡
Surface Treatment Electrostatic Spraying / Hot-Dip Galvanized
Standard Panel Size 50–400mm Width, Customized Length
Weight Per Square Meter 22–25kg/㎡
Connection Type Pin Connection / Flat Tie Connection
Application Scenarios Wall, Column, Beam, Slab, Basement, Tunnel, Bridge
